Porsche 996 Carrera: Zweite Motorinstandsetzung, diesmal solide durch Albert Motorsport
Scope of Work:
-
Transport the vehicle from Slovenia to Albert Motorsport
-
Inspect and assess the engine damage, prepare a cost estimate
-

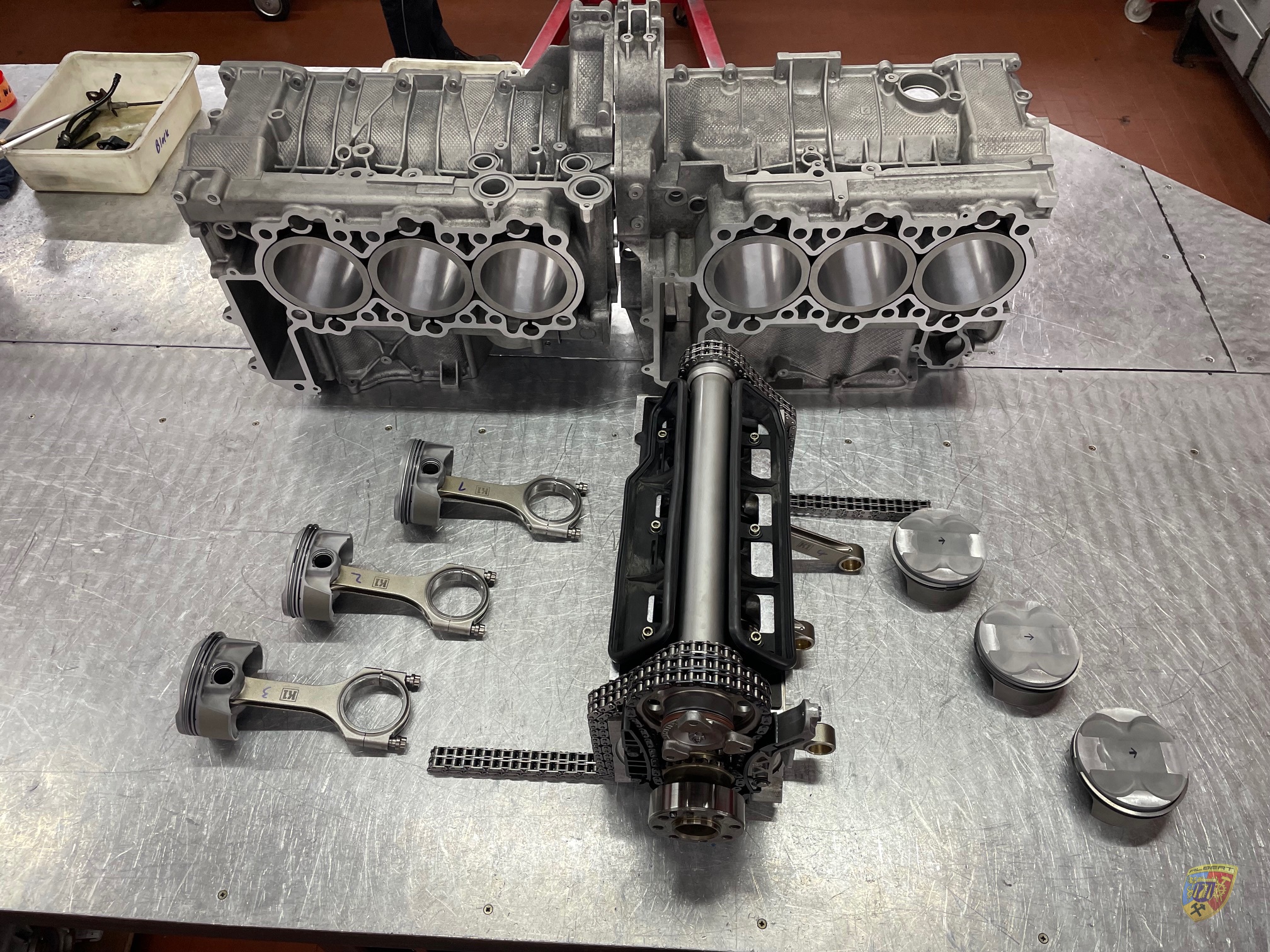

Remove engine and transmission, completely disassemble the engine due to damage
Extent of Damage:
-
Severe oil consumption
-
Significant coolant leakage through the head gaskets into the exhaust
-
Extensive damage and assembly errors in the engine
-
Crankshaft bearings were installed incorrectly and are bent
-
The crankshaft is now damaged due to this glaring mistake!
-
Exhaust mount is broken
-

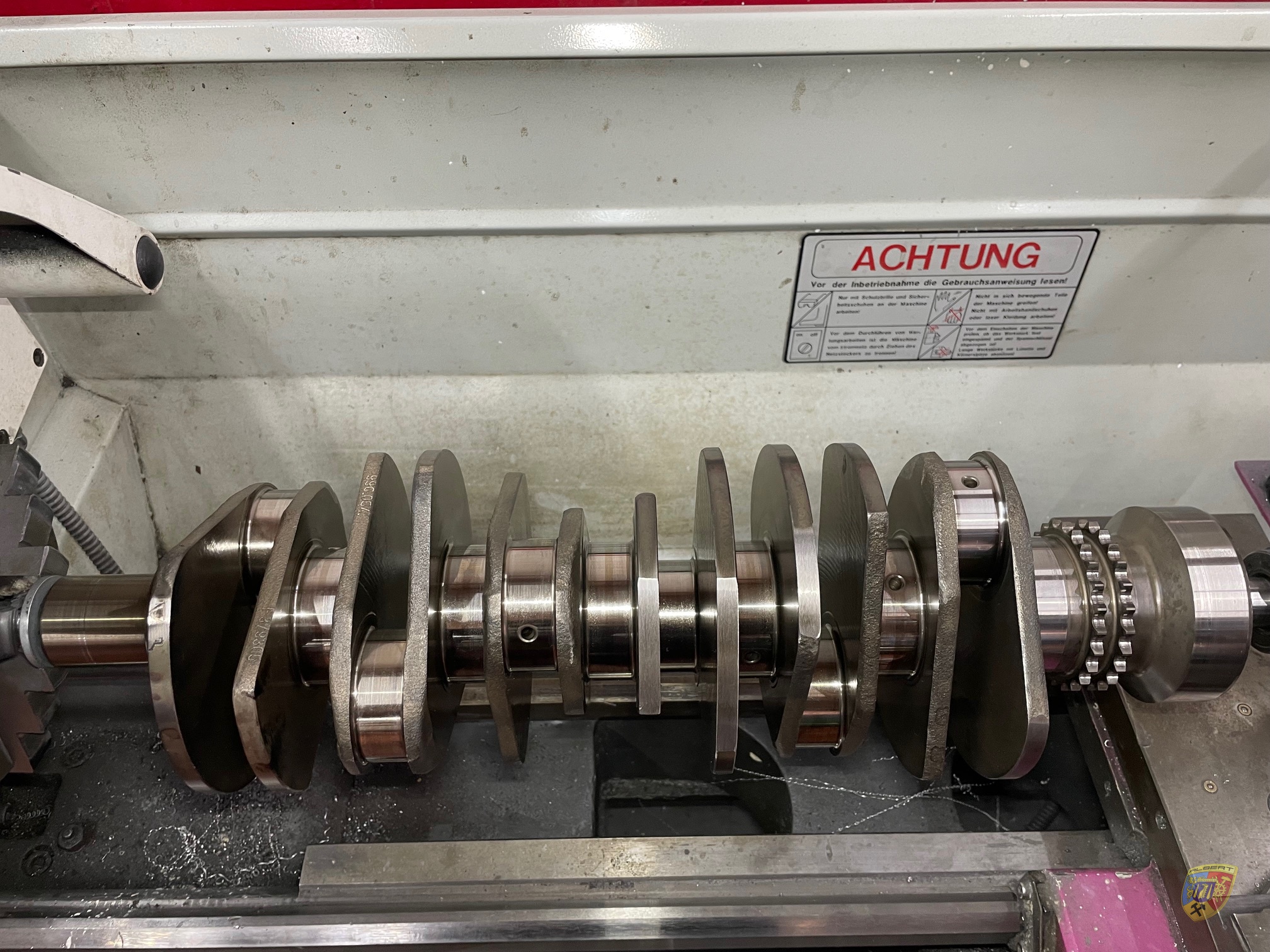

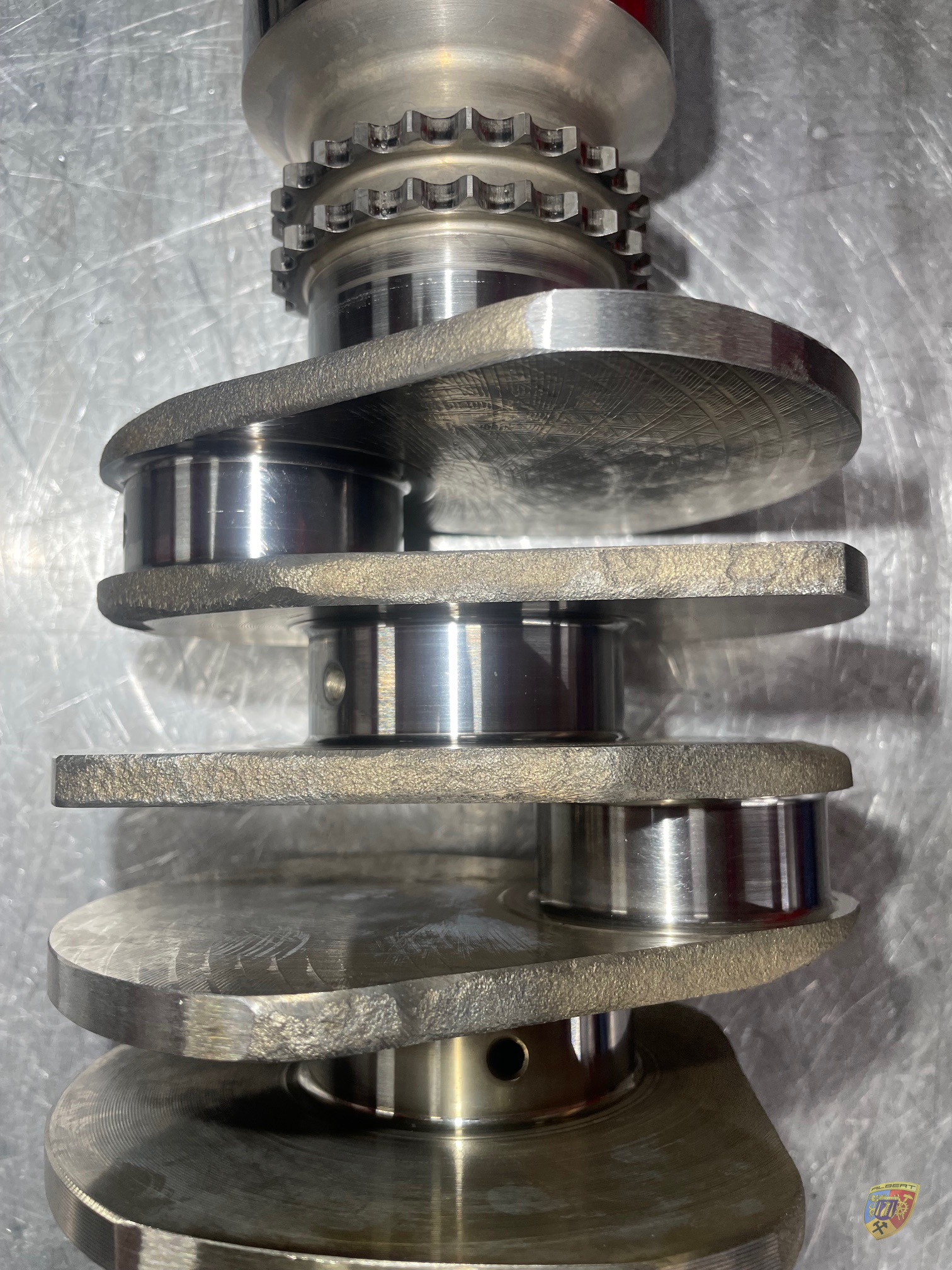

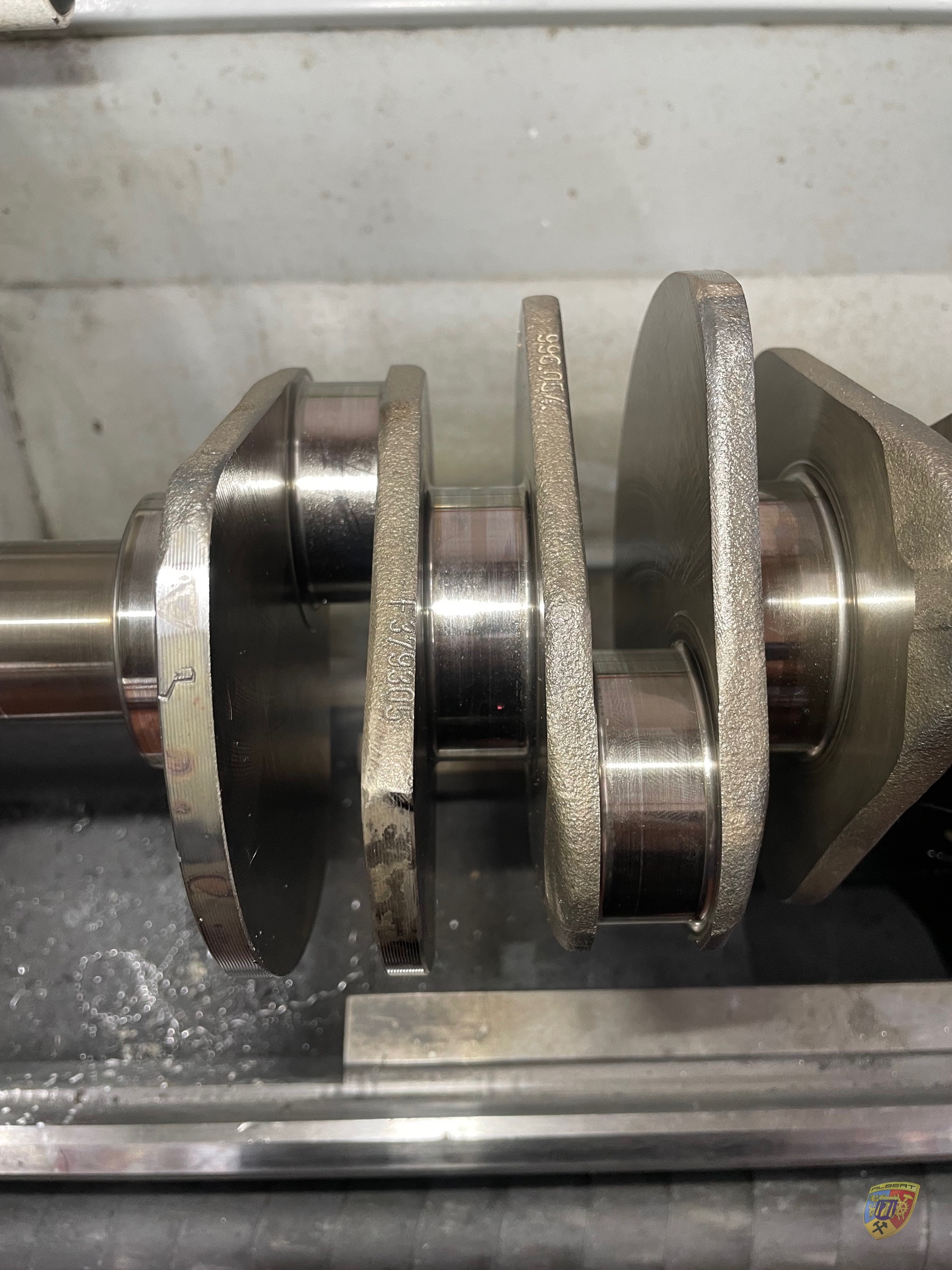

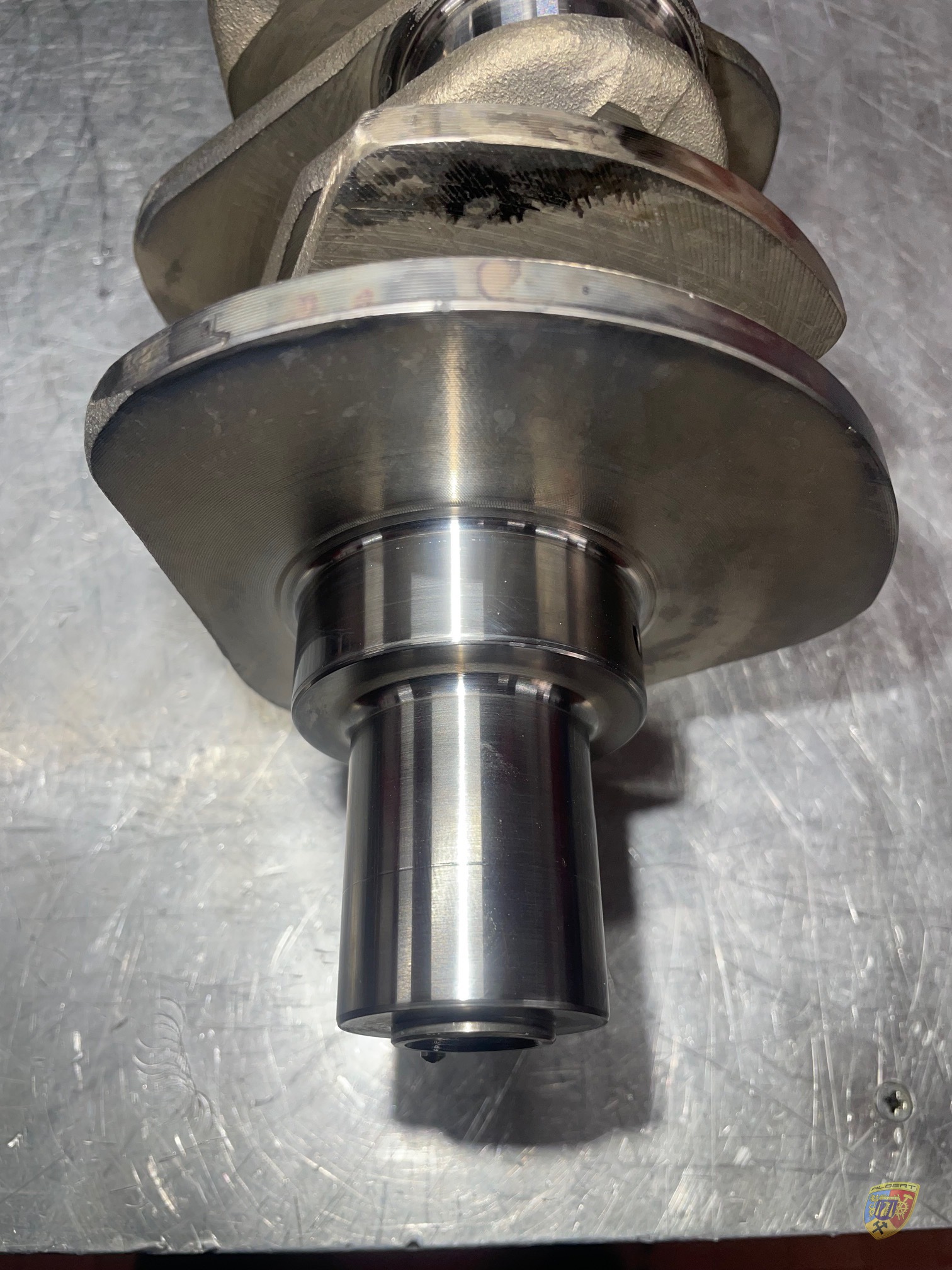

Crankshaft damaged at the flywheel contact surfaces
-
Intermediate shaft damaged at the contact surfaces
-
Pistons have incorrect clearance in the cylinders
-
Piston rings have incorrect end gap for use in steel cylinders
-
Piston protrusion is too high!
-
Incorrect cylinder head gaskets used, too thick!
-
Neither the engine block nor the cylinder heads have flat sealing surfaces
-
Unbelievable negligence during assembly
-

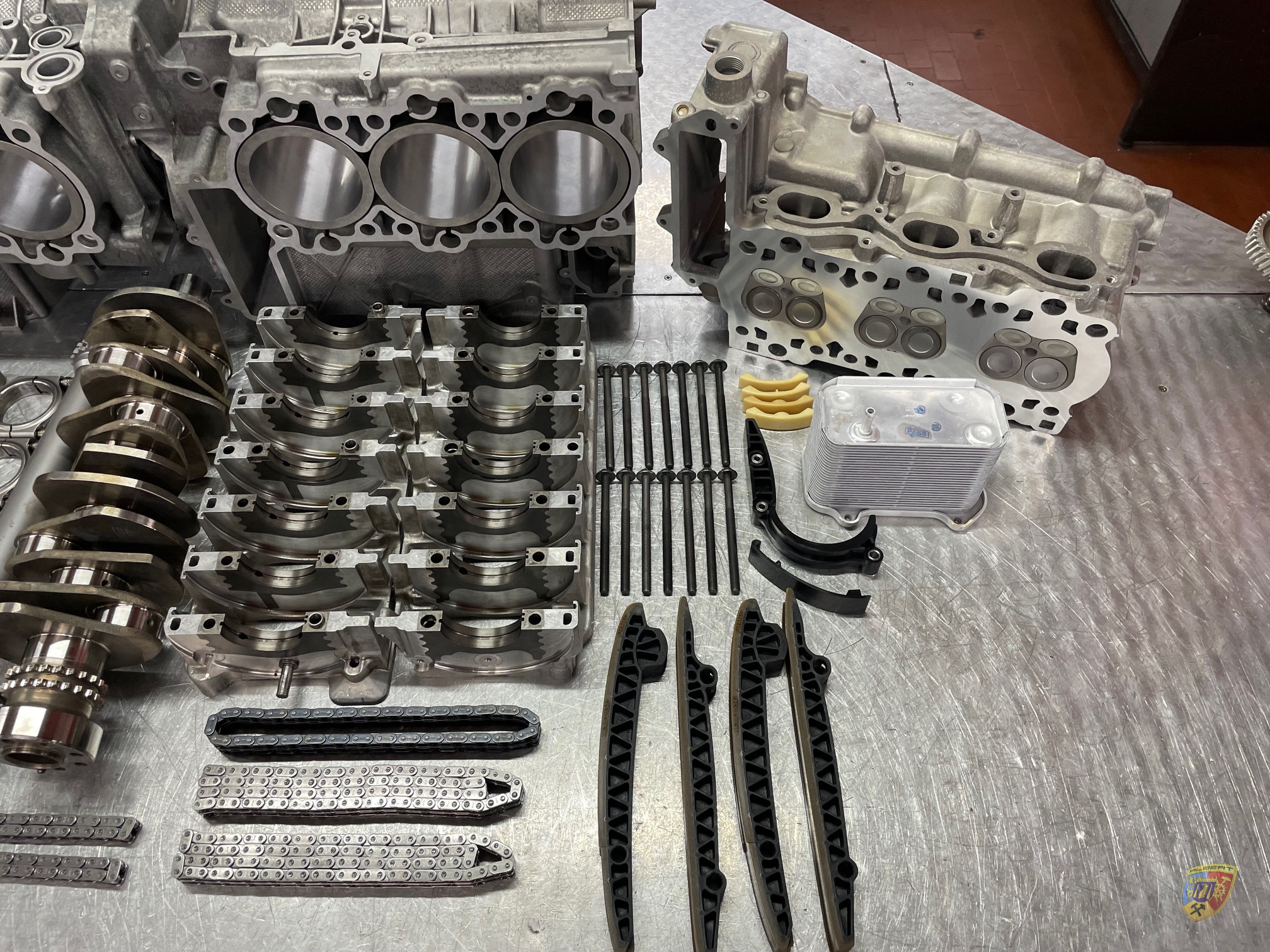

Chain guides were not replaced and are defective
-
Sealing surfaces for the crankshaft seals were not machined
-
Intermediate shaft thrust surface damaged due to faulty assembly
-
Crankshaft seal surfaces were roughly filed by hand
-
All crankshaft bearings are defective
-
Dirt during assembly caused scoring in fits
-
Overall, a case of appalling negligence!
Repair Process:
-
Transport the vehicle from Slovenia to Albert Motorsport
-
Remove engine and transmission, completely disassemble the engine due to damage
-

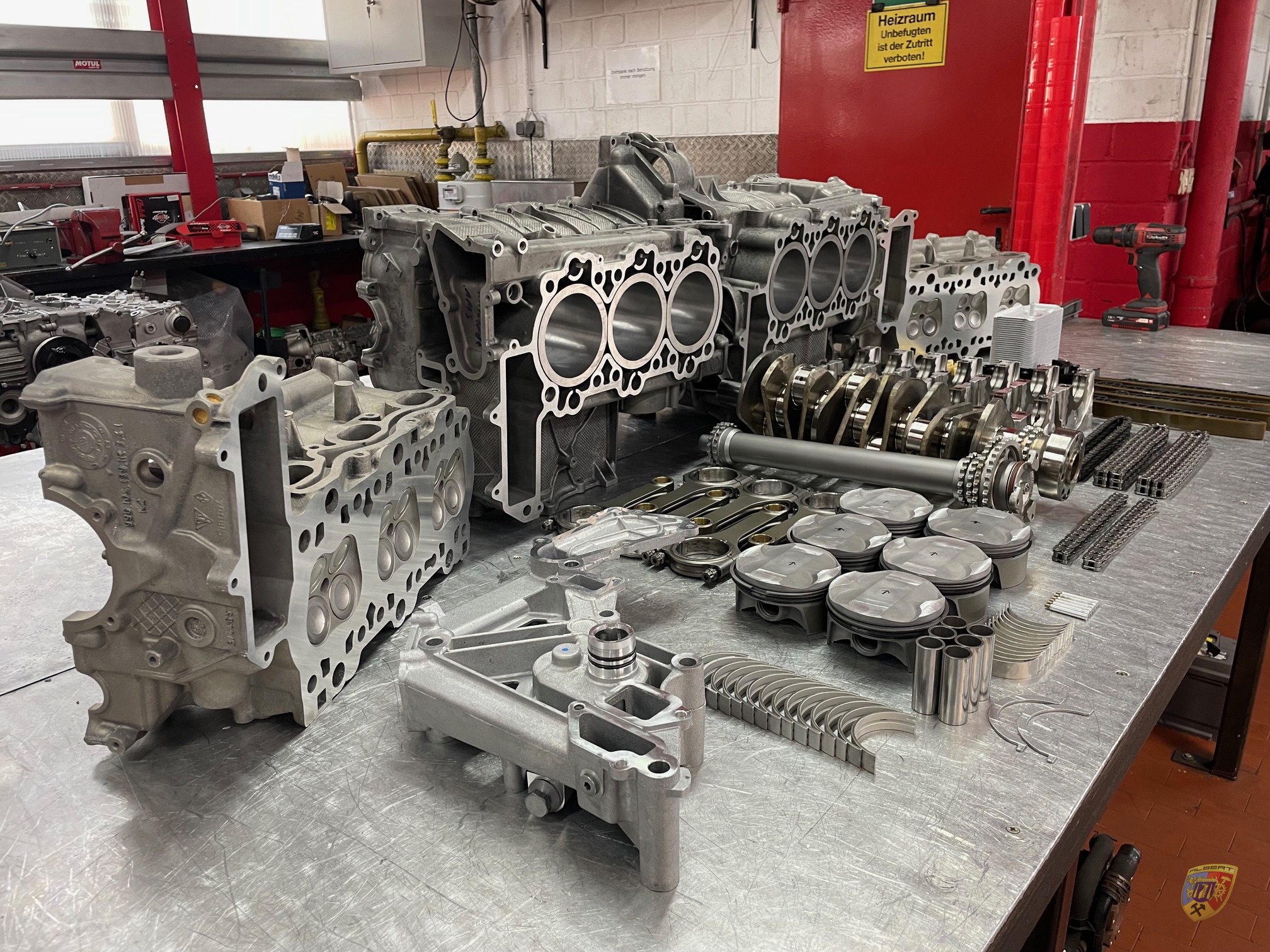

Thoroughly clean all parts and inspect for damage and defects
-
Prepare a cost estimate
-
Consult with customer, repair order confirmed by AMS
-
Damaged parts will be kept for evidence
-

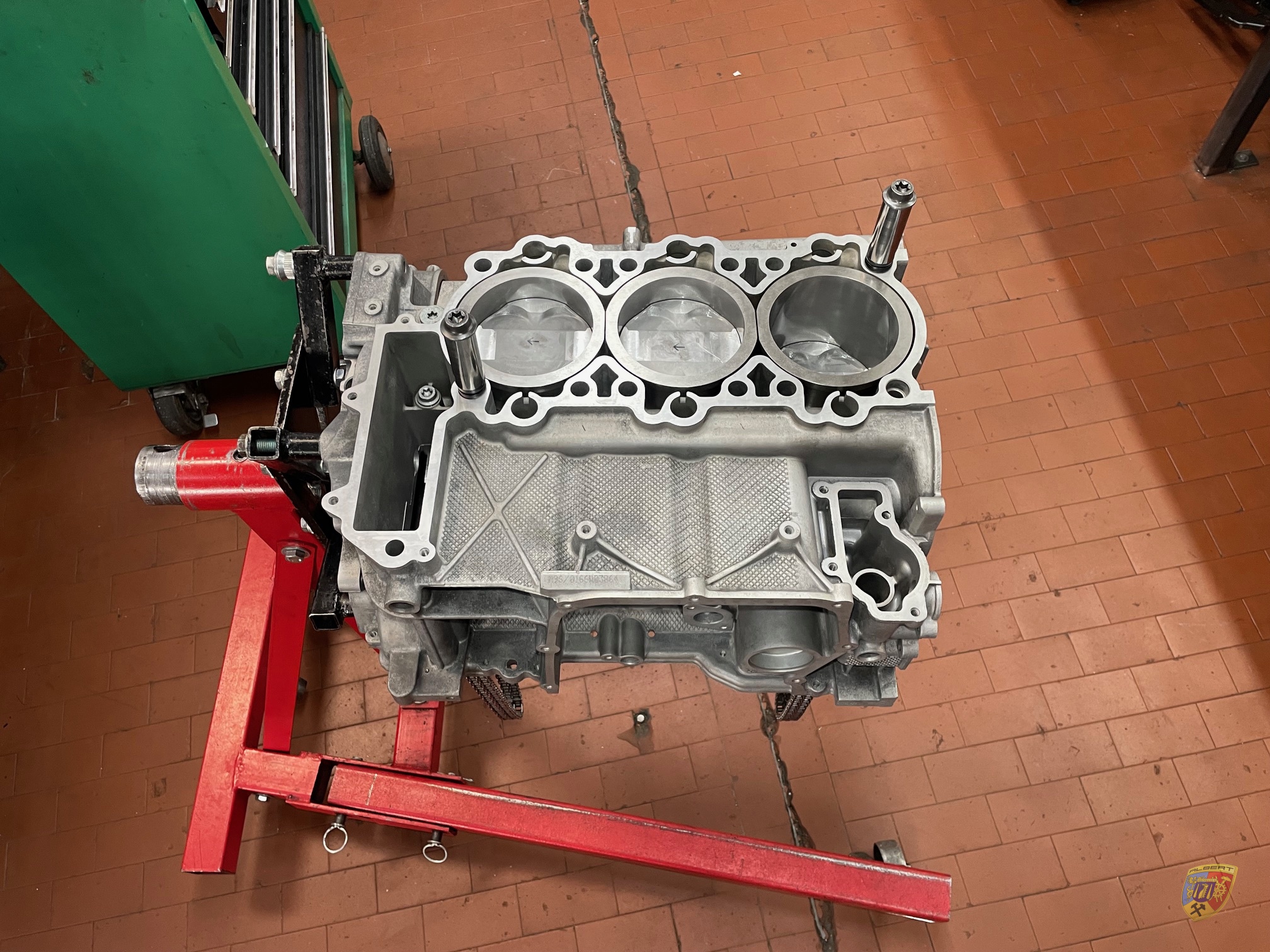

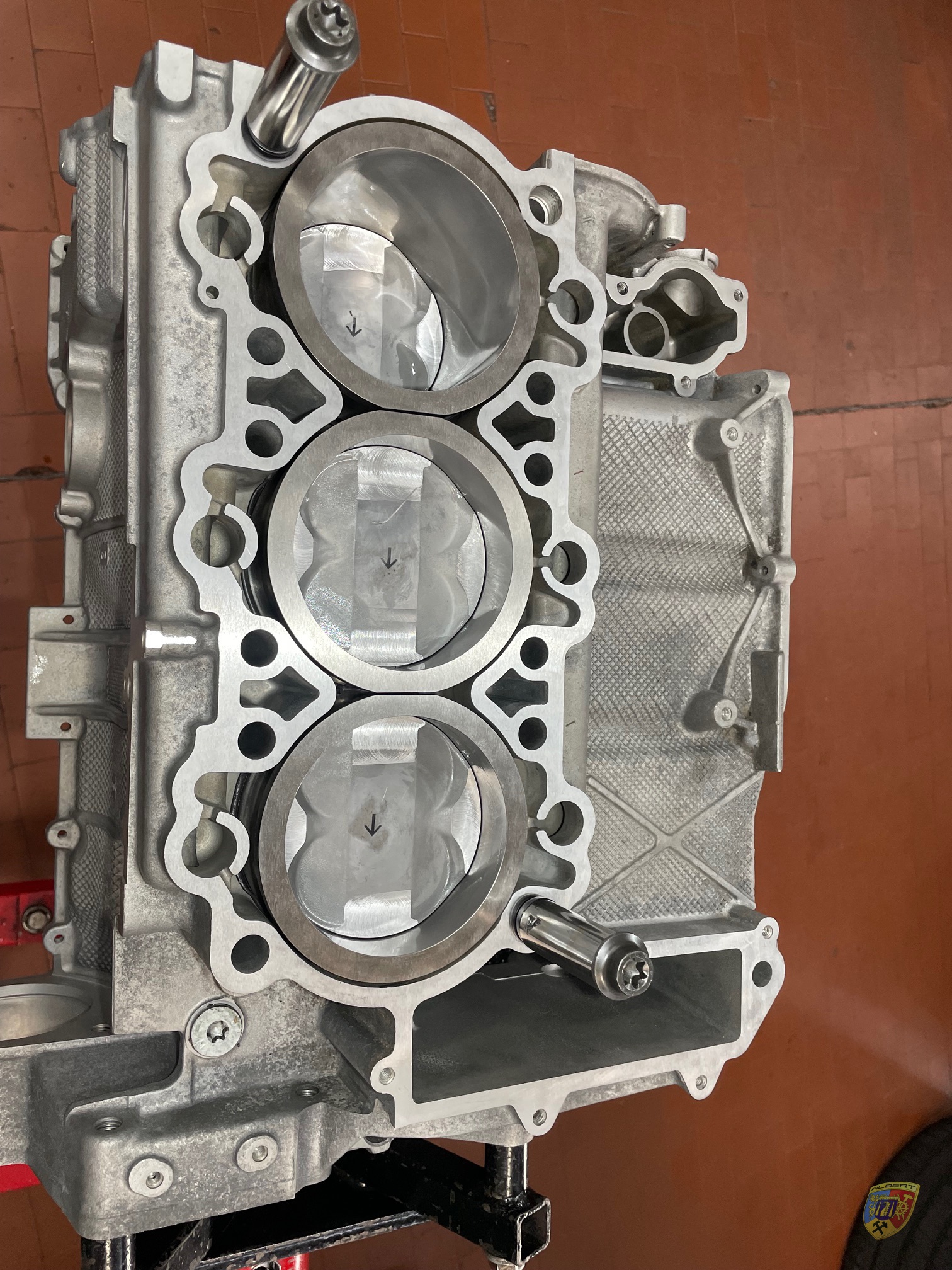

Clean engine block using shot peening and densify surface
-
Rework cylinder heads
-
Rework valve train
-
